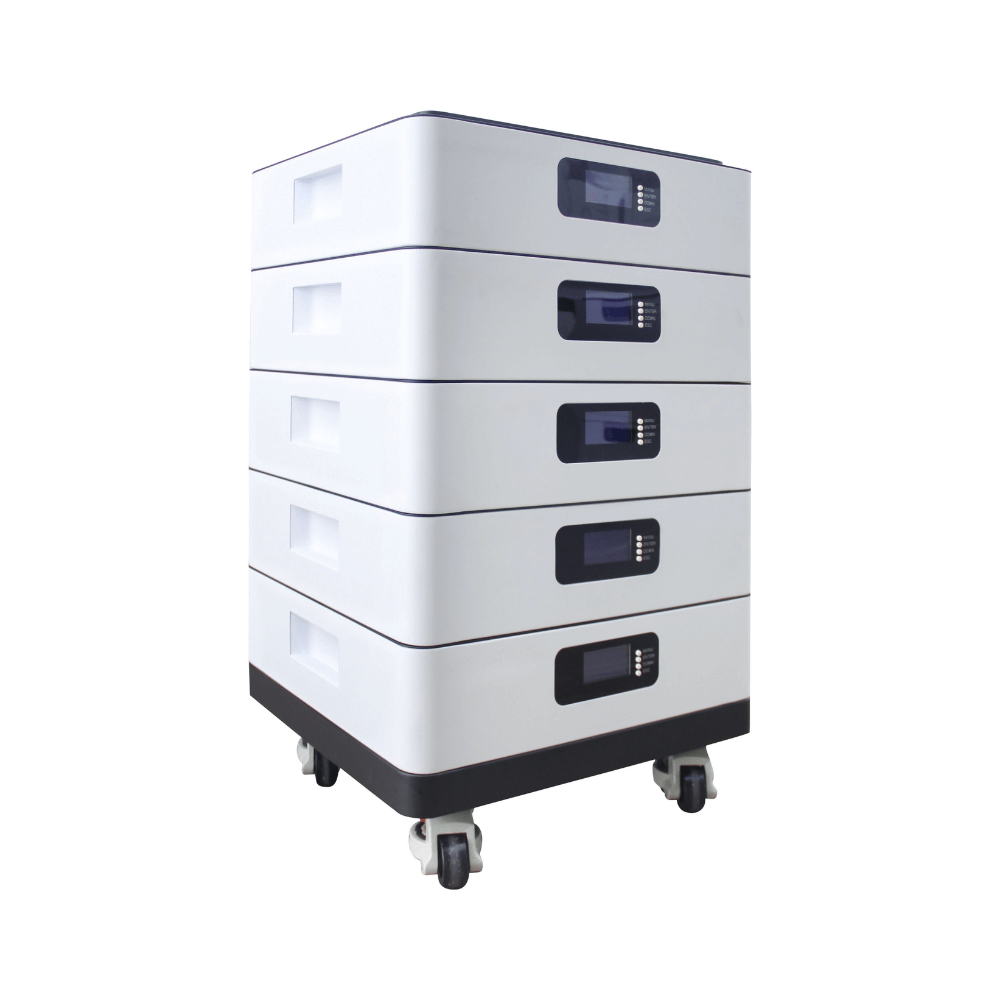

Modular LiFePO4 battery. Start with 5.12kWh and stack up to 4 units (20.48kWh) for flexible capacity expansion.
The Stackable 5kWh LiFePO4 Battery Module Series offers modular energy storage solutions with four pre-configured options. Each system is built by stacking 5kWh modules, providing flexibility from 5.12kWh to 20.48kWh capacity.
|
Model Number |
FOH48-5.0U-S1 |
FOH48-10.0U-S1 |
FOH48-15.0U-S1 |
FOH48-20.0U-S1 |
|
Number of 5kWh Modules |
1 module |
2 modules |
3 modules |
4 modules |
|
Total Energy |
5.12 kWh |
10.24 kWh |
15.36 kWh |
20.48 kWh |
|
Total Capacity |
100Ah |
200Ah |
300Ah |
400Ah |
|
Dimensions (L×D×H) |
530×500×150 mm |
530×500×300 mm |
530×500×450 mm |
530×500×600 mm |
|
Total Weight |
50 kg |
100 kg |
150 kg |
200 kg |
Modular home energy systems, scalable commercial storage, data center backup, renewable energy integration, and flexible capacity expansion projects.
