High-capacity wall-mounted system for homes and businesses. Choose IP20 for indoor or IP65 for industrial use. Supports up to 22kW PV input.

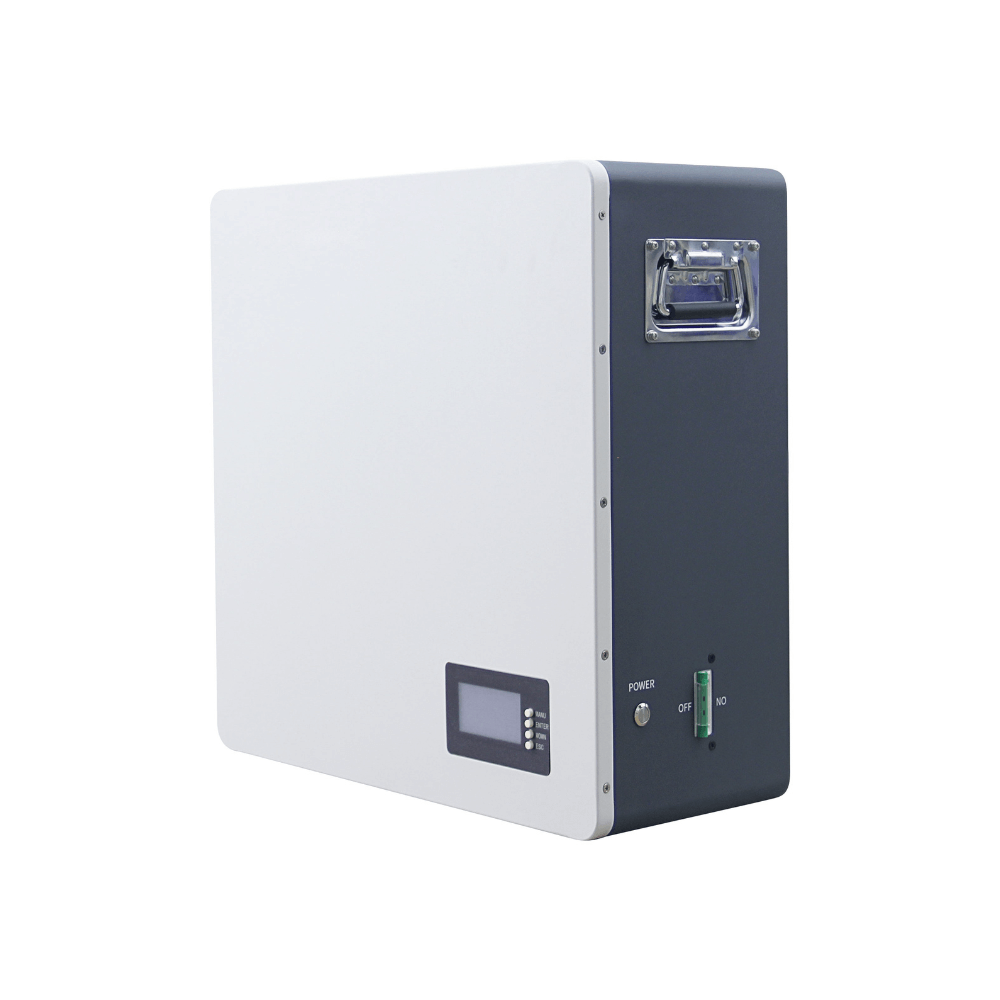

The Wall-Mount 10kWh LiFePO4 Battery System delivers high-capacity energy storage for residential and commercial applications. Choose between IP20 for indoor use or IP65 for demanding environments.
|
Feature |
IP20 Version |
IP65 Version |
|
Protection Level |
Indoor use |
Industrial grade |
|
Display |
LED indicator |
Touchscreen interface |
|
Housing |
Standard finish |
Weatherproof construction |
|
Suitable For |
Garages, basements |
Warehouses, workshops |
|
Parameter |
Value |
|
Battery Energy |
10.5 kWh |
|
Nominal Voltage |
51.2V |
|
Capacity |
200Ah |
|
Max Charge/Discharge Current |
200A |
|
Cycle Life |
6000+ cycles (80% DOD) |
|
Dimensions |
500×520×240 mm |
|
Weight |
80 kg |
|
Max PV Input |
22kW (optional) |
Whole-house backup, commercial solar storage, microgrids, EV charging support, and industrial power management.
